Air cooled constant temperature & humidity precision air conditioner
Features
1.Cooling capacity: 7.5KW-93.6KW
2.Refrigerant: R22(R407C/R410A)
3.Digital control mode, can reach high accuracy.
4.Keep the dust, oil fog and moisture from entering the internal of the equipments.
5.The structure design makes the installation more flexible. And the unit can be installed perfectly in the side or outside wall of the equipment.
6.Totally solve dust and moisture contamination issues caused by ventilation.
7.Widely used in telecommunications, broadcasting, electricity, automation and other industries out-door cabinet, IDC room cooling needs.


Technical Data
GT-HFM series constant temperature and humidity precision air conditioner specification 1
Model GT-HFM-()0712151820242730
SpecificationTotal cooling capacitykW7.512.615.318.621.824.227.531.8
Sensible cooling capacitykW6.911.714.117.420.222.42529.5
Electric heatingkW3669991215
Air volume 2*m3/h18003250410052005400660075009000
Outlet air pressure 2*Pa2525255050757575
Noise 3*dB(A)5454555656565656
Temperature control range and accuracyºC18~28,±1
Humidity control range and accuracy%45~70,±5
Power3N-380V-50Hz
Input power 4*kW61112.616.817.51923.928.9
Indoor unitSupply air fantypelow noise centrifugal type
capacitykW0.320.550.751.11.11.52.22.2
Electrode humidifierhumidification volumekg/h33555888
Electric heatingcapacitykW3669991215
Evaporator typeInner grooved copper tube and aluminum fin
Air filterprimary efffect plate type filter
DimensionLmm9501200120012001200160016001600
Wmm580680680680680780780780
Hmm18001880188018801880200020002200
Weightkg190230270290300400430510
Outdoor unitModel GT-( )*quantityWL08*1WL12*1WL15*1WL18*1WL20*1WL25*1WL27*1WL30*1
compressortypeTotally enclosed scroll type
quantity11111111
condenser typeInner grooved copper tube and aluminum fin
Condensing fantypeLow noise axial type
capacitykW0.370.370.370.550.550.550.750.75
DimensionLmm800850850980980980980980
Wmm800850850980980980980980
Hmm9801080108010801080108012341234
Weightkg90120150170170205210220
Freon 5*typeR22(R407C/R410A)
control methodOut balance expansion valve
Collecting pipe 6*liquid pipe`s diametermm9.52(9.52)12.7(9.52)12.7(9.52)15.88 (12.7)15.88 (12.7)15.88 (12.7)15.88 (12.7)15.88 (12.7)
gas pipe`s diametermm15.88(12.7)19.05(15.88)19.05 ( 15.88)22.23 (19.05)22.23 (19.05)28.6 (22.23)28.6 (22.23)28.6 (22.23)

Application

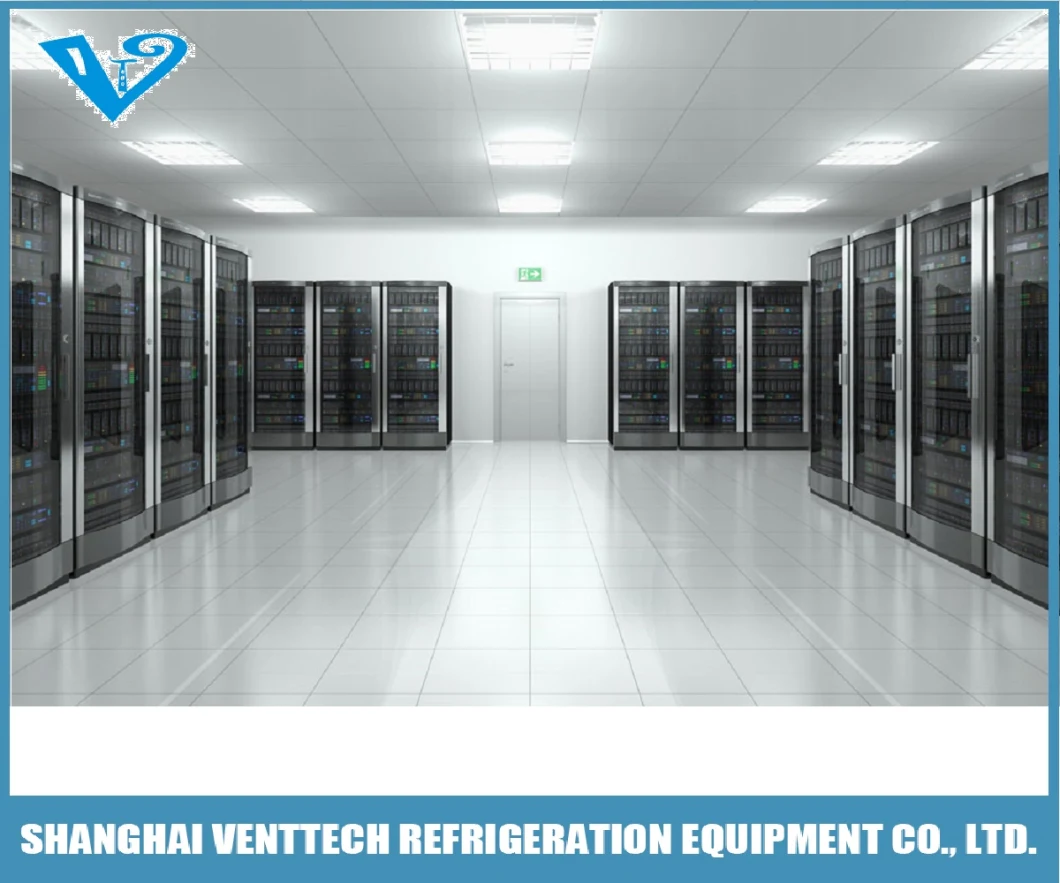

  1. server room,computer room
  2. workshop, exhibition hall, precision machine manufacture, metering room
