|♦ Easy to install, several optional testing range|
♦ Dual use for gas and liquid, used to various material compatible with 316L stainless steel
♦ Several optional linear analog signal
♦ Quick response, high accuracy
♦ Good longterm stability, low energy consumption,smart
|♦ Pipe and ventilation systems|
♦ Hydraulic and pneumatic systems
♦ Cooling and heating systems
♦ Water supply and water heating systems
♦ Air-conditioning systems
♦ Automation system temperature mensuration and control
|Installation Mode: Inserting|
|Depth of Inserting (mm): 50mm (typically, beyond the screw threads); custom-made available.|
|Sensor||Pt100 or Pt1000|
|Signal Output||4~20mA 0~5VDC 0~10VDC|
|Signal Line Specification||2wire 3wire 3wire|
|Supply Voltage||9~30VDC 9~30VDC 15~30VDC|
|Accuracy||±0.1%FS ±0.3%FS ±0.5%FS|
|Pressure Resistance||Typically 40bar (Max300bar)|
|Longterm Stability (1 Year)||±0.1%FS|
|Response Time||T=50°C 2.3s;T=90°C 5.4s|
|Electric Protection||Reversed Polarity and Overload Protection and Optional Surge Protection.|

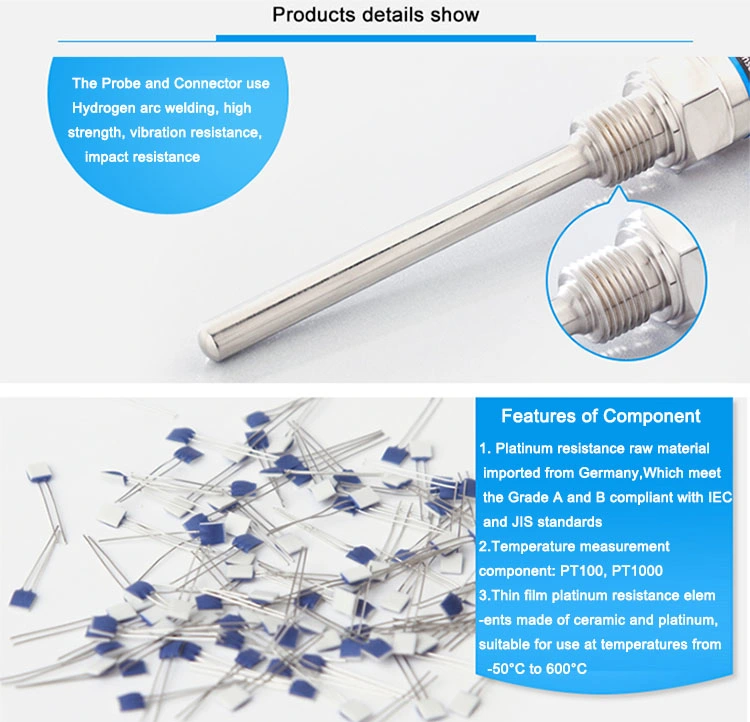

|Housing||316L stainless steel|
|Wetted Parts||316L stainless steel|
About Hunan Firstrate Sensor Co.,ltd
Hunan Firstrate Sensor Co.,ltd is a high-tech joint venture specialized in researching, manufacturing, and sales of sensors and transmitters. Our products include Pressure sensors and Transmitters, Temperature sensors and transmitters, Liquid-level sensors and Transmitters, Wind Speed & Direction sensor, and Intelligent Control Instruments. They are widely used in the field of aviation & aerospace, national defense & military project, engineering machinery, railway & urban railway system, automotive electronics system, HVAC, air compressor, textile, petrochemical, coal mines and other industrial automation control. FST600-202 Air Conditioner Water Engine Coolant Temperature Sensor Probes
In order to recommend you the most suitable sensor , please show us following necessary info according to your practical situation.
1. output: 4-20mA , 0-5V or 0-10VDC....?
2. Whether need cable ?
3. quantity: ?
4. price items: CIF or Exw or FOB ?
5. Your complete company name,address, post code,contact person, tele, fax etc.
