Product Description
Water Flow Sensor Alarm System Transducer Monitor Switch

SKFS Series flow switch is used to sense the flow rate of liquid in the pipe line, when the flow rate reaches the setting point, it turns off (or turn on) to protect the torrential flow.

The setting point could be adjusted according to different request of flow rate.

Paddle type flow switch can be used wherever a simple,economical and reliable monitor instrument.
it can monitor flow in water or other non-corrosive liquid.

Specification


ModelWFS25
Max.Pressure od Fluid10 Bar
Temperature of FluidMin.4ºC
Max.120ºC
Ambient Temperature120ºC

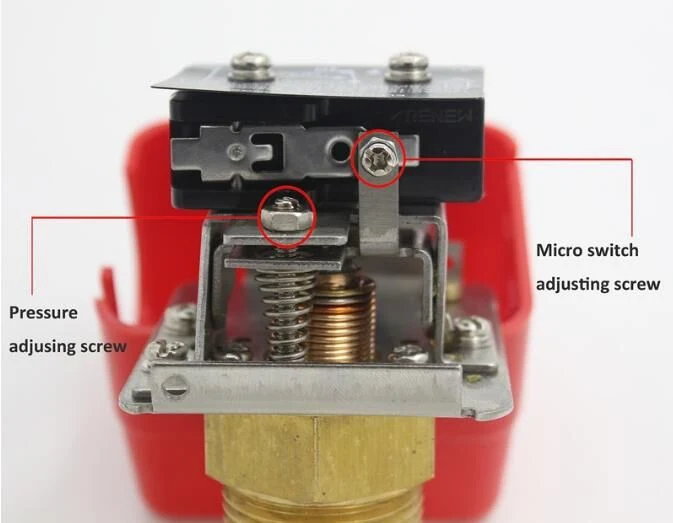

Adjust ModeAdjust with the adjusting screws under the cover
Connecting Mode with Water Pipe1''Piping Screw Thread
Flow RateSee the Above Rate Sheet
MaterialsCasing and CoverStretching Steel Sheet
Connecting PipeBrass
Internal ComponentsBrass and Phosphor Bronze
Water ValvePhosphor Bronze
Rated Current, Voltage15(8)A,220V AC
