Water Flow Sensor Hydrochloric Acid 4 Inch Electromagnetic Flowmeter

        HDF-DC electromagnetic flowmeter can be used to measure the volume flow of conductive fluid in a closed pipeline. It is widely applied in the flow measurement and control in the fields of chemical and petroleum industry, metallurgy industry, water and wastewater, agriculture and irrigation, paper making, food and beverage industry and pharmaceutical industry, etc.

       When the conductive fluid flows through the measuring tube of the sensor, the voltage signal in direct proportion to the average flow velocity of the fluid will be inducted on the electrodes. The signal is amplified and treated by the transmitter to realize various display functions.

Water Flow Sensor Hydrochloric Acid 4 Inch Electromagnetic Flowmeter

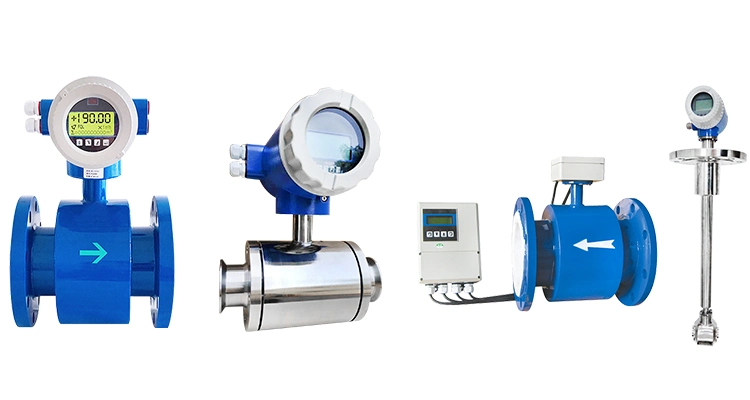

1) Flange Type                        2) Tri-clamp Type                  3) Remote Type
  4) Insertion Type

Technical Parameters:
Product nameElectromagnetic flow meter
Nominal Diameter(mm)DN10-DN2000mm
MediumConductive fluids
Accuracy Class0.5%F.S
Electrode materialSS316L, Hastelloy B, Hastelloy C, Titanium, Tantalum and platinum-iridium alloy, etc.
Medium Temperature Medium:-20~120ºC
ConnectionInsertion, Flange, Tri-clamp, Remote
Signal Output4-20mA or pulse output, RS485
Supply PowerAC220V, DC12-24V or Lithium cell Battery
Fluid conductivity≥ 5 uS/cm
Explode-proof ClassExdIIBT6
Protection ClassIP65
KeywordsSlurry Flow Transmitter

Water Flow Sensor Hydrochloric Acid 4 Inch Electromagnetic Flowmeter
Water Flow Sensor Hydrochloric Acid 4 Inch Electromagnetic Flowmeter


Selection Table
Water Flow Sensor Hydrochloric Acid 4 Inch Electromagnetic Flowmeter

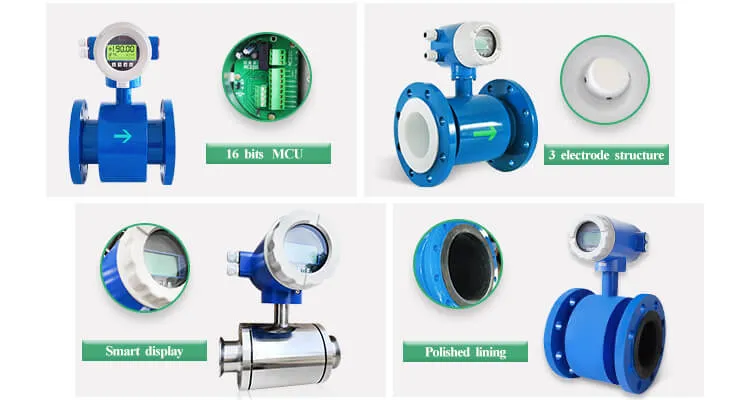

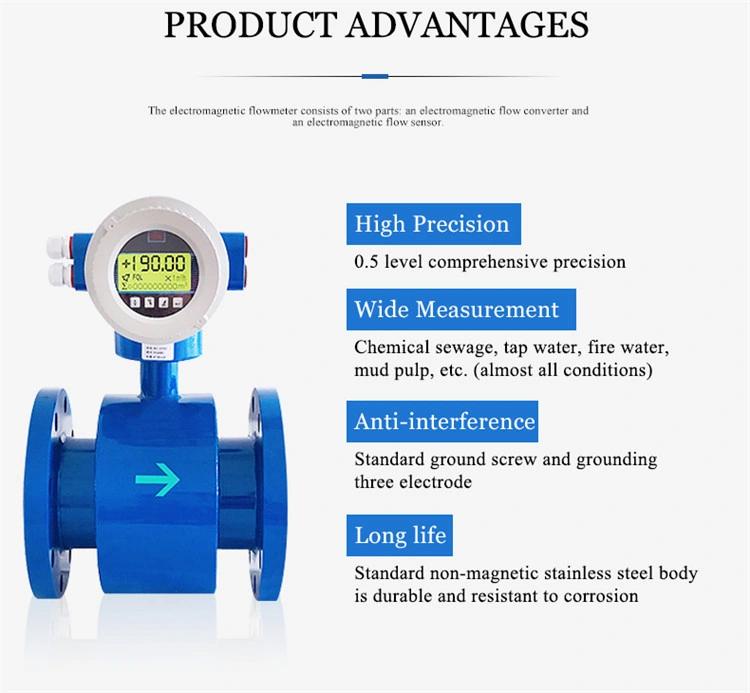

Electromagnetic Flow Meter Features
1) DN 6 to DN2000 covers a wide range of pipe size.
2) No obstacle in the pipe, no pressure-loss and lower requirement for straight pipeline.
3) RS485 or RS232 interface supports digital communication.
4) A variety of liners and electrodes are available to satisfy different flow characteristic
5) Easy to install and maintain
6) Flexible connection to flow instruments for flow control
7) Wide variety of process connections
8) Programmable low-frequency square wave field excitation, improving measurement stability and reducing power consumption.
9) High definition LCD display with backlight.


Installation
Water Flow Sensor Hydrochloric Acid 4 Inch Electromagnetic Flowmeter
How to select the right Electromagnetic Flow Meter?
The key questions which need to be answered before selecting a turbine flowmeter are:
1.what's the fluid?
2.what's flow range? and pipe size?
3.what's working pressure?
4.what's working temperature?
5.do you need display or not?

Water Flow Sensor Hydrochloric Acid 4 Inch Electromagnetic Flowmeter

Why choose Huadian
1. Instruments have been exported to over 50 countries.
2.100% QC inspection Before Shippment.
3.ISO, CE, SGS standard and factory price.
4. All instruments have been 100% recognized by the Bureau of National  Metrology.
5.Excellent product quality and strong technical support capability.
