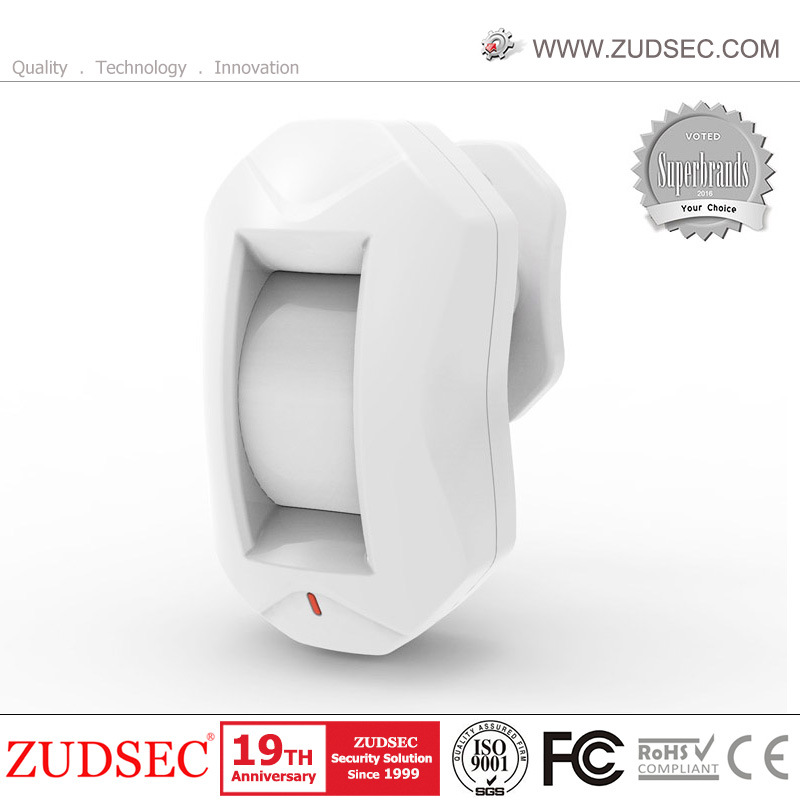

Wired Curtain PIR Sensor Home Security Alarm System Motion Sensor Detector

Wired Mini Curtain PIR Motion Detector: This ZDD-103BPIR can quickly react to the intrusion of human body and cause alarm, Detecting human\'s motion and boy\'s temperature in a fan-sharp area, ZDD-103PIR is Curtain Passive Infrared Detector with small sizes, which features it\'s exquisite and styling design with wall mounted and

Featured Products

Wired Mini Curtain PIR Motion Detector: This ZDD-103BPIR can quickly react to the intrusion of human body and cause alarm, Detecting human's motion and boy's temperature in a fan-sharp area, ZDD-103PIR is Curtain Passive Infrared Detector with small sizes, which features it's exquisite and styling design with wall mounted and ceiling mounted optional. It adopts advanced superhigh detetion ability and anti-false alarm ability, and MCU processing ensuring the reliability from design basis. It's widely used for safety defending at terrace, window, door, passageway etc.

Features:
- Detecting human's motion and boy's temperature in a fan-sharp area.
- MCU control, resist false alarm efficiently
- Double temperature compensation
- With tamper switch
- Fresnel lens
- Pulse count adjustment
- Anti-white light interference & Anti RF interference(20V/m-1GHz)
- Alarm output N.C. or N.O.
- Alarm time optional (3s or 30s)
- Adopted SMT technology with high stability.
- Wall / Ceiling mounted installation.

Wired Curtain PIR Sensor Home Security Alarm System Motion Sensor Detector



    Specifications


Input Voltage: DC 9~16V
Operating Current: ≤18mA (DC 12V )
Detecting range: 9M(wall mounted); 6m (Ceiling Mounted 3.6 meter Height)
Detecting Angle: 15°
Self-testing tiime: 60s
Alarm time: 3s/30s optional
Alarm indication: Red LED
Sensor: Double element pyroelectric infrared sensor
Anti RF interference: 10MHz~1GHz 20v/m
Alarm output N.C. or N.O.
Tamper output: N.C.(DC28V 100mA)
Operating Temperature:-10ºC~+50ºC
Installation Method: Ceiling or Wall Mounted
Dimension: 85x40x40mm; Weight: 60g/pc

Wired Curtain PIR Sensor Home Security Alarm System Motion Sensor Detector
Wired Curtain PIR Sensor Home Security Alarm System Motion Sensor Detector
Wired Curtain PIR Sensor Home Security Alarm System Motion Sensor Detector
Wired Curtain PIR Sensor Home Security Alarm System Motion Sensor Detector
Wired Curtain PIR Sensor Home Security Alarm System Motion Sensor Detector
Wired Curtain PIR Sensor Home Security Alarm System Motion Sensor Detector
Wired Curtain PIR Sensor Home Security Alarm System Motion Sensor Detector
Wired Curtain PIR Sensor Home Security Alarm System Motion Sensor Detector
Wired Curtain PIR Sensor Home Security Alarm System Motion Sensor Detector
